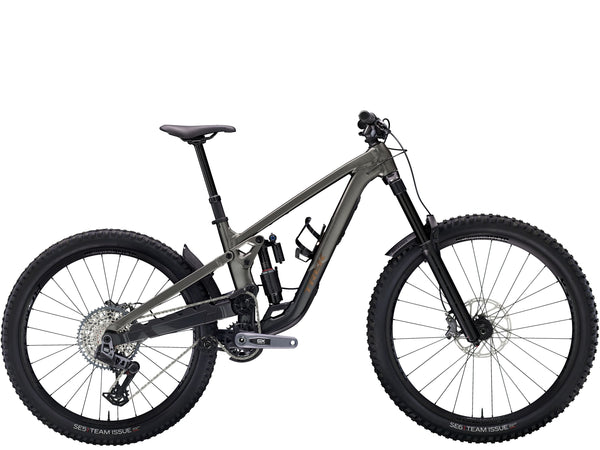

Trek Slash 9 GX AXS T-Type Gen 6

Slash 9 GX AXS T-Type is an enduro mountain bike that gives you top performance in an alloy package. It's built on a high-pivot chassis that boosts traction for punchy climbs and keeps stability a priority when you point it straight down. A mixed setup with a 29˝ front and 27.5˝ rear wheel keep handling playful. Plus, you get an upgraded 170mm/170mm RockShox suspension package that holds up to anything you can throw at it, all wrapped up with a wireless SRAM GX AXS transmission that keeps shifts on-point.

• Its high-pivot suspension gives you insane control for hairy descents, while carefully tuned anti-squat and oversized pulleys make pedaling astonishingly efficient
• The long, 170mm/170mm front and rear travel is more than enough for stomping big jumps and cleaning rock gardens
• It comes ready to roll with a mixed wheel setup that gives you a fast-rolling 29in front hoop and stiff, yet nimble 27.5in rear wheel, and can be set up as a 29er for more speed
• You can tweak Slash for how and where you ride with an adjustable leverage rate, bolt-on lower shock mount for swapping to full 29er, and adjustable-angle headset (sold separately)
• Internal storage gives you a spot to stash tools and snacks, and it's available on all models

High-pivot suspension

Slash's high main pivot allows the axle to move rearward as the suspension compresses, so the back wheel moves with the force from bumps and gets out of the way faster. On the trail, it feels ultra-smooth while maintaining more momentum with insane traction.

Curb the kickback

Slash's oversized upper idler not only eliminates the pedal kickback caused by high pivot, but its size and position also give you just the right amount of anti-squat for efficient pedaling. The lower idler takes chain tension off the derailleur so you get smoother shifting and suspension performance.

Mixed wheel size

You get a 29" front wheel for monster truckin' over stuff, with a smaller 27.5" wheel out back for getting rowdy. Want full 29er speed? Just swap the lower shock mount (sold separately) to lower BB height for running a faster wheel out back.

Improved internal storage

Slash's storage door is bigger, easier to use, and the plastic parts are all made from recycled materials.

Adjust the suss for full send

Adjust leverage rate with just a flip of a chip. Ride it in the Less progressive setting for a plusher feel perfect for rugged trails with square-edge bumps. Flip it to More progressive when you're hitting big features and don’t want to bottom-out, or when you want to run a coil shock.

Slack or steep, the choice is yours

Install angle adjust headset cups (sold separately) to tweak the head tube angle a degree steeper or slacker to your liking — all without impacting your bottom bracket height.

Frame	Alpha Platinum Aluminum, high main pivot, idler pulley, internal storage, angle-adjust headset, adjustable leverage rate, integrated frame protection, internal routing, alloy rocker link, ISCG 05, Active Braking Pivot, UDH, 148x12mm thru axle, 170mm travel
Shock	RockShox Vivid Select+, 230mm x 65mm
Wheel Front	Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5''
Wheel Rear	Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 27.5''
Tire	Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 27.5x2.50''
Tire Part	Bontrager TLR sealant, 6oz
Rim Strip	Bontrager TLR
Skewer Rear	Bontrager Switch thru axle, removable lever
Shifter	SRAM AXS POD
Rear Derailleur	SRAM GX Eagle AXS, T-Type
Crank	SRAM GX Eagle, DUB MTB Wide, T-Type, 30T, 55mm chainline, 165mm length
Bottom Bracket	SRAM DUB MTB Wide, 73mm, BSA threaded
Cassette	SRAM Eagle XS-1275, T-Type, 10-52, 12 speed
Chain	SRAM GX Eagle, T-Type, 12 speed
Brake	SRAM CODE Bronze 4-piston hydraulic disc // SRAM CODE Bronze 4-piston hydraulic disc
Brake Rotor	SRAM CenterLine, 6-bolt, round edge, 200mm
Saddle	Bontrager Verse P3, chromoly rails
Seatpost	Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 310mm length
Handlebar	Bontrager Line, alloy, 35mm, 27.5mm rise, 820mm width
Stem	Bontrager Elite, 35mm, 0 degree, 35mm length
Headset	Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible
Grips	Bontrager XR Trail Pro, alloy lock-on
Battery	SRAM AXS battery pack (with charger)

Geometry Chart

B B Drop	1
B B Height	35.2
Chainstay Length	42.9
Eff Seat Tube Angle	78.1°
Eff Top Tube	54.8
Frame Reach	43
Frame Size Letter	S
Frame Size Number	15.5
Frame Stack	58.8
Head Angle	63.5°
Head Tube Length	10
Offset	4.3
Seat Tube	39
Seat Tube Angle	74.0°
Standover	72.7
Trail	13.2
Wheelbase	119.5
Wheel Size	27.5"
