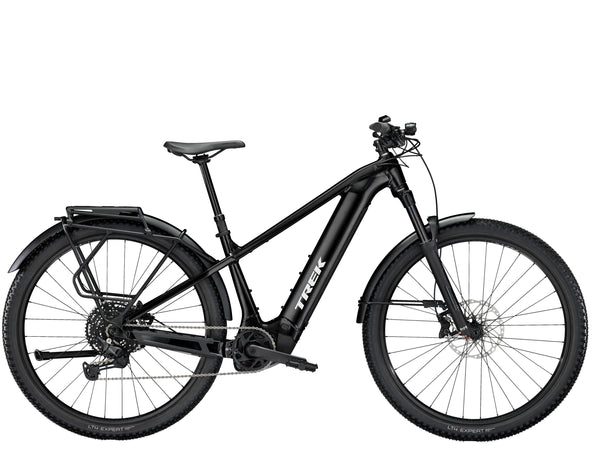

Trek Service Electric

Service Electric is an electric bike built for those dedicated to serving the public, supporting our communities, and preserving our natural resources. It's equipped with a Bosch motor for sustained speeds of up to 28 mph and a long-range battery for covering more distance on a single charge.

• Powerful Bosch system helps you sustain speeds of up to 28 mph
• Easily raise and lower the saddle using the dropper post’s handlebar lever
• The high-quality suspension fork soaks up bumps on streets and trails alike, and can easily be adjusted for a specific rider weight
• The fork's lockout feature ensures you're always riding efficiently: close it for more speed on smooth pavement, open it up on rougher trails
• Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy remove the battery without tools and lets you mount a water bottle cage

How do I buy a Service bike?

Service bikes are for public service departments only. You won't find them in stock at your local Trek retailer nor are they available to purchase online. However, if you are a qualifying agency and interested in a quote or purchasing a Service bike or a whole fleet of bikes, please contact your local Trek retailer.

Will my bike have a curved top tube?

Smaller frames (S) have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. Larger frames (M and up) have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.

Removable Integrated Battery

RIB is a one-piece battery and cover with a built-in handle that can easily be removed and re-installed in the frame with no tools and no hassle. It’s the most convenient way to remove your battery for transport, security, or just easier charging.

What is the range?

To see how far you can ride your electric mountain bike on a single charge, check out Bosch’s range calculator. We’ve auto-filled the variables for this bike model and the average rider, but you can make adjustments to get your most accurate estimate.

A better way to produce aluminum

Starting in 2024, we began removing high-emission aluminum from our manufacturing and replacing it with low-emission aluminum made with renewable energy. By October 2025, nearly every alloy bike we make - this one included - had made the switch, driving a major drop in our footprint.

Frame	Alpha Platinum Aluminum, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Control Freak internal routing, Motor Armor, Boost148, 12mm thru axle
Fork	SR Suntour XCR 34, air spring, 2CR damper, hydraulic lockout, tapered steerer, 44mm offset, Boost 110, 15mm bolt-on thru axle, 100mm travel
Tire	Bontrager LT4 Expert, reflective strip, wire bead, 60 tpi, 27.5x2.40''
Hub Front	Shimano TC500 alloy, centerlock, 110x15mm thru axle
Hub Rear	Shimano TC500 alloy, centerlock, 148x12mm thru axle
Rim	Bontrager Connection, double-wall, 32-hole, 20mm width, Presta valve
Skewer Rear	Bontrager Switch thru axle, removable lever
Shifter	Shimano U6000, 10 speed
Rear Derailleur	Shimano CUES U6000 GS
Crank	FSA Bosch CK-220, 36T ring, 165mm length
Cassette	Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed
Chain	Shimano LG500, 9/10/11 speed
Chainring	FSA, 36T, steel
Brake	Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper // Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper
Brake Rotor	Shimano RT64, centerlock, 203mm // Shimano RT64, centerlock, 203mm
Pedal	VP-536 nylon platform
Saddle	Bontrager Commuter Comp
Seatpost	Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6mm, 310mm length
Seat Collar	Bolt-on, 36.4mm
Handlebar	Bontrager Comp, alloy, 31.8mm, 40mm rise, 780mm width
Stem	Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
Headset	FSA IS-2, 1-1/8'' top, 1.5'' bottom
Grips	Bontrager XR Endurance Comp, lock-on
Fender	Trek Powerfly 27.5'' custom fender
Cargo Rack	MIK-compatible alloy rear rack
Light	Supernova Mini 3 pure, LED, headlight // Supernova TL3 Mini, LED
Battery	Bosch PowerTube 600Wh, smart system
Motor	Bosch Performance Line Speed, smart system, 28mph/45kph
Charger	Bosch standard 4A, 110V, smart system

Geometry Chart

B B Drop	4.9
B B Height	30.7
Chainstay Length	45.5
Eff Seat Tube Angle	71.6°
Eff Top Tube	59.8
Frame Reach	39
Frame Size Letter	S
Frame Size Number	15.5"
Frame Stack	62.3
Head Angle	67.6°
Head Tube Length	13
Offset	4.2
Seat Tube	39.4
Standover	72.2
Trail	10.4
Wheelbase	112.5
Wheel Size	27.5"

Color

TREK BLACK
