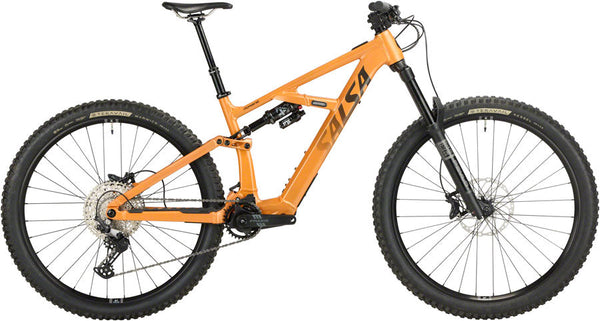

Moraine is Salsa's light electric mountain bike. It adds range route options and capability to every trail ride with a Fazua Ride 60 drive system and 145 mm of Split Pivot suspension. Moraine's geometry feels right at home on backcountry lines and buffed-out flow trails. Add Salsa’s on-bike cargo features and Moraine makes riding to the trailhead sessioning lines and taking second laps feel like second nature.
6061-T6 aluminum frame145mm of Split Pivot suspension to maximize traction and efficiencySplit Pivot + frame design philosophy allows riders to swap between travel classesFazua Ride 60 class 1 mid-drive motor (20 mph/32 kph max assist)60Nm max torque430Wh Fazua Energy 430 removable internal batteryCompatible with 210 Wh Fazua Energy range-extender battery (sold separately)Fazua LED Hub on top tube for battery status and riding modesFazua Ring Control for easy ride mode selectionInternal cable and hose routing12 x 148mm Boost rear spacingSRAM UDH compatibleAccommodates up to 29 x 2.5" or 27.5 x 2.7" tiresIntegrated tool and tube strap location in front trianglePump mount locationAll sizes fit one bottle or Fazua Energy range-extender batteryFrame protection on downtube main pivot seatstay and chainstay
| Rear Axle |
12mm Thru x 148mm |
| Throttle |
No |
| TT (Effective) |
612 |
| Brake Type |
Disc |
| Removable Battery |
Removable for Service |
| Battery Power (Wh) |
430 |
| Battery Power (V) |
43.2 |
| Battery Power (Ah) |
10 |
| Fork Type |
Suspension |
| Lights Included |
No |
| Frame Material |
Aluminum |
| Frame Type |
Suspension |
| Front Axle |
15mm Thru x 110mm |
| Drive Type |
Mid-Drive |
| Ebike Class |
1 |
| Charger Included |
Yes |
| Color |
Terracotta Orange |
| Battery |
Li-Ion |
| Assist Levels |
3 |
| Range Estimate (Mi) |
40 |
| Motor Torque (Nm) |
60 |
| Charge Time (h) |
3.5 |
| Mfg Size |
Medium |
| Assist Speed (Mph) |
20 |
| Walk Assist |
Yes |
| Platform |
Moraine |
| Wheel Size |
29" |
| Defined Color |
Orange |
| Size |
Medium |
