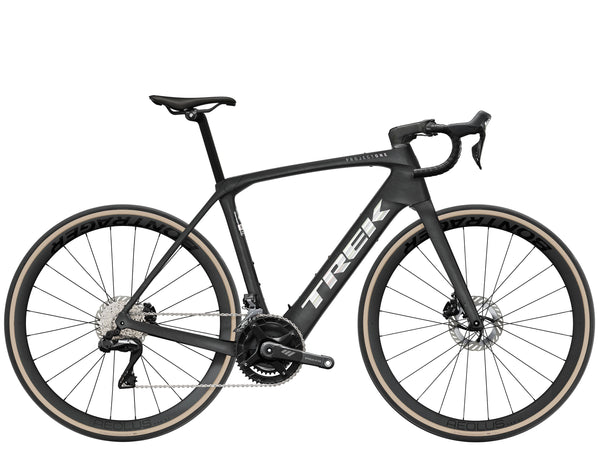

Domane+ SLR 7 US 52 Matte Deep Smoke

Domane+ SLR 7 is a category-redefining carbon e-road bike. It's built on an 800 Series OCLV Carbon frame that hides a compact and refined motor to elevate your ride. It quietly blends in with the elements, so you stay more connected to the ride while enjoying extra power on steep climbs and long miles. To top it all off, you get smooth shifting from an electronic Shimano Ultegra Di2 2x12 drivetrain and carbon Aeolus Pro 37 wheels.

• The TQ HPR60 harmonic pin ring motor is impressively discreet, compact, light, whisper-quiet, and offers a powerful assist up to 28mph
• The smart charge port, sleek integrated display, and discreet controls keep the bike looking and feeling like a traditional road bike
• Stable endurance geometry partners with road-smoothing rear IsoSpeed that absorbs bumps in the road for a smoother, more comfortable ride
• On long rides, you can add on a Range Extender that fits neatly in the bottle cage and gives you the power you need to go the extra distance
• It comes equipped with a 2x12 Shimano Ultegra Di2 wireless drivetrain for precision shifting wherever you ride

Compact, quiet, and mighty e-system

The TQ harmonic pin ring motor is super efficient with an amazing range-to-weight-to-speed ratio. It's ultra-compact, whisper-quiet, and offers an unbelievably natural-feeling assist up to 28 mph.

Compact, quiet, and mighty e-system

The TQ harmonic pin ring motor is super efficient with an amazing range-to-weight-to-speed ratio. It's ultra-compact, whisper-quiet, and offers an unbelievably natural-feeling assist up to 32 kmh.

Ultra-lightweight

Domane+ SLR is our lightest e-bike ever, thanks to our best and lightest 800 Series OCLV Carbon and a smart frame designed to shave weight.

Designed to go the distance

An integrated 360Wh battery is hidden in the downtube and offers an impressive range of around 60 miles in Eco mode.

Optional Range Extender

Explore farther with an optional 160Wh Range Extender that gives you an extended total range of around 90 miles in Eco mode. Want even more miles? The Trek Connect App lets you customize your assist to extend your range even more.

The smooth advantage

Newly refined IsoSpeed soaks up fatiguing bumps and saves weight so you can ride stronger longer.

Frame	800 Series OCLV Carbon, TQ drive system, tapered head tube, rear IsoSpeed, internal routing, flat mount disc, fender mounts, 142x12mm thru axle
Fork	Domane+ carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Wheel Front	Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle
Wheel Rear	Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle
Tire	Bontrager Kwaremont RSL TLR, tubeless ready, folding bead, Race Dual-Compound, 320 tpi, 700x32mm
Tire Part	Bontrager TLR sealant, 6oz
Rim Strip	Bontrager TLR
Skewer Front	Bontrager Switch thru axle
Skewer Rear	Bontrager Switch thru axle, removable lever
Shifter	Shimano Ultegra R8170 Di2 // Shimano Ultegra R8170 Di2, 12 speed
Front Derailleur	Shimano Ultegra R8150 Di2, braze-on, down swing
Rear Derailleur	Shimano Ultegra R8150 Di2, 34T max cog
Crank	Praxis Carbon, 165mm length
Cassette	Shimano Ultegra R8101, 11-34, 12 speed
Chain	Shimano Ultegra/XT M8100
Chainring	Praxis, 50/34T, 12 speed
Brake	Shimano Ultegra hydraulic disc, flat mount
Brake Rotor	Shimano CL800, centerlock, 160mm
Saddle	Verse Short Pro, carbon rails, 145mm width
Seatpost	KVF aero carbon seatpost, 20mm offset, 280mm length
Handlebar	Bontrager Pro IsoCore VR-SF, 40cm
Stem	Trek RCS Pro, -7 degree, 90mm length
Battery	TQ 360Wh
Motor	TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power
Charger	TQ 4A charger

Geometry Chart

B B Drop	8
Chainstay Length	43
Eff Top Tube	53
Frame Reach	37.1
Frame Size Number	52 cm
Frame Stack	56.1
Head Angle	71.3°
Head Tube Length	14.5
Offset	5.3
Saddle Rail Height Max Short	68
Saddle Rail Height Max Tall	71
Saddle Rail Height Min Short	61.5
Saddle Rail Height Min Tall	64.5
Seat Tube	47.5
Seat Tube Angle	74.2°
Standover	74.7
Trail	6.2
Wheelbase	101.3
Wheel Size	700c
