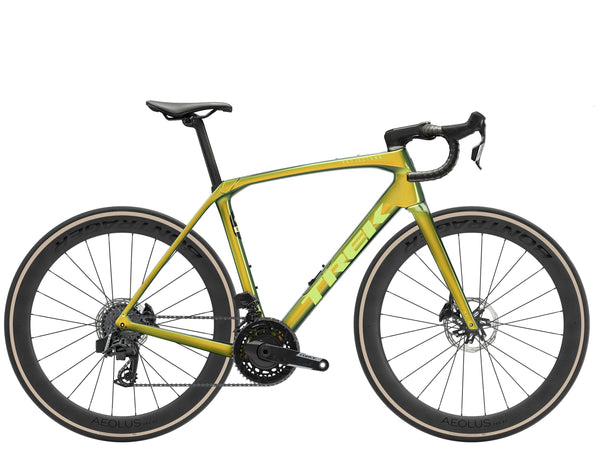

Domane SLR 7 AXS 58 Gecko Phaze

Domane SLR 7 AXS is an ultralight carbon endurance road bike decked out with the high-end parts made for high-performance rides. You get an 800 Series OCLV Carbon frame with a 2x12 wireless SRAM Force AXS E1 electronic drivetrain for precision shifting, a power meter for getting the most out of your training, and OCLV Carbon wheels and handlebars.

The smooth advantage

Newly refined IsoSpeed soaks up fatiguing bumps and saves weight so you can ride stronger longer.

Podium-topping speed

Raced to victory on the infamous cobblestones of Paris-Roubaix, the new carbon Domane is faster than ever thanks to new aerodynamic improvements and an ultra-light design.

Lighter than ever

Our best and lightest 800 Series OCLV Carbon and a new gram-saving design make this our lightest Domane SLR disc ever.

Versatile tire clearance

Comes equipped with fast rolling 32mm tires, but offers clearance for up to 38mm tires so you can confidently ride everything from smooth pavement to light gravel.

Internal storage

Internal downtube storage and top tube bag mounts make it easy to carry everything you need for all-day rides.

Refined integration

Domane is more integrated than ever, with hidden cables and a hidden seatpost clamp.

Frame	800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle
Fork	Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle
Wheel Front	Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
Wheel Rear	Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12mm thru axle
Tire	Bontrager Kwaremont RSL TLR, tubeless ready, folding bead, Race Dual-Compound, 320 tpi, 700x32mm
Tire Part	Bontrager TLR sealant, 6oz
Skewer Front	Bontrager Switch thru axle
Skewer Rear	Bontrager Switch thru axle, removable lever
Shifter	SRAM Force AXS E1 // SRAM Force AXS E1
Front Derailleur	SRAM Force AXS, braze-on
Rear Derailleur	SRAM Force AXS, 36T max cog
Crank	SRAM Force AXS with power meter, 46/33, DUB, 172.5mm length
Bottom Bracket	SRAM DUB, T47 threaded, internal bearing
Cassette	SRAM Force XG-1270, 10-36, 12 speed
Chain	SRAM Force E1, 12/13 speed
Brake	SRAM Force AXS hydraulic disc, flat mount
Brake Rotor	SRAM Paceline X, rounded, centerlock, 160mm
Saddle	Verse Short Pro, carbon rails, 145mm width
Seatpost	KVF aero carbon seatpost, 20mm offset, 320mm length
Handlebar	Bontrager Aero Pro, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 39cm control width, 42cm width
Stem	Trek RCS Pro, -7 degree, 100mm length
Battery	SRAM AXS battery pack (with charger)

Geometry Chart

B B Drop	7.8
Chainstay Length	42.5
Eff Top Tube	56.7
Frame Reach	38
Frame Size Number	58cm
Frame Stack	61.1
Head Angle	72.0°
Head Tube Length	19.5
Offset	4.8
Saddle Rail Height Max Short	75.5
Saddle Rail Height Max Tall	78.5
Saddle Rail Height Min Short	69
Saddle Rail Height Min Tall	72
Seat Tube	54.8
Seat Tube Angle	73.0°
Standover	79.6
Trail	6
Wheelbase	102.2
Wheel Size	700c
