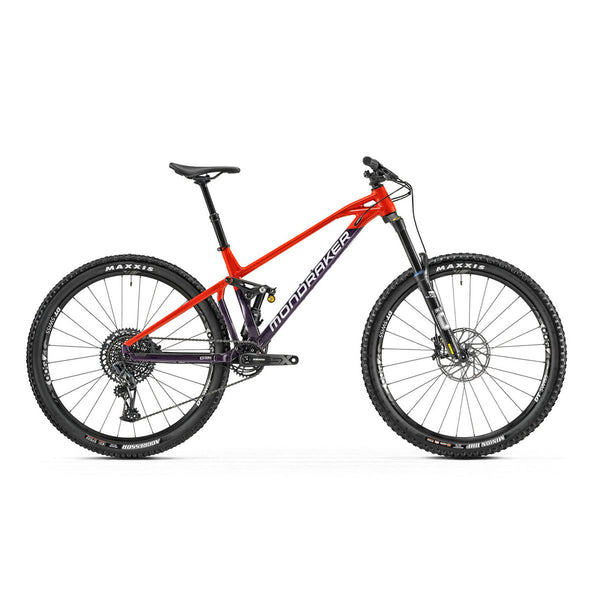

Mondraker - FOXY R Bike - Deep Purple-Flame Red (ENDURO)

$5,999

Size

Color

NOTE:

DESCRIPTION

Experience the Foxy R difference in enduro, trail, uphill, and downhill! This top-end mountain bike boasts enhanced performance and ultra-modern geometry.

Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.

Heavy enduro riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough terrains.

The durable stealth alloy frame helps with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.

Foxy R is loaded with more protection features such as sealed Enduro bearings, and performance features like dedicated 1X drivetrain, telescopic Seatpost internal routing, boost rear axle, and BSA bottom bracket for better traction and momentum. One-piece monoblock upper link offers better lateral and torsional stiffness to reduce lateral stress on the shock action.

Foxy R sports high-performance rear derailleurs and wide 29” tubeless-ready tires, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.

Size: S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Colors: Deep Purple / Flame Red

SPECS

COMPONENTS / TECHNICAL SPECIFICATIONS

FRAME	6061 hydroformed Stealth Alloy Evo, one-piece Monoblock upper link, molded chainstay and down tube protection
SIZES	S: 380mm / M: 420mm / L: 470mm / XL: 510mm
REAR SHOCK	Öhlins TTX Air 205x62.5mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
SHOCK SETTINGS	C20 compression, R35 rebound
FORK	Öhlins RXF 36 M.2, TTX18 Twin Tube cartridge damper, ramp chamber, high-speed compression lever with climb mode, low-speed compression adjust, rebound adjust, 44mm offset, 160mm
HEADSET	ONOFF Saturn, sealed angular contact bearings
STEM	ONOFF Sulfur FG, 6061 forged alloy, 30mm length, 31.8mm bar clamp
HANDLEBAR	ONOFF Sulfur 1.0, double-butted 6061 alloy, 800mm width, 20mm rise, 9° backsweep, 5° upsweep, 31.8mm clamp diameter
GRIPS	ONOFF Diamond, 135mm length, single lock-on
SEATPOST	ONOFF Pija dropper, 31.6mm, Single bolt, 31.6mm, Single bolt Drop: 100mm (SM) 125mm (MD) 150mm (LG) 170mm (XL)
SADDLE	SDG Bel-Air 3.0, LPU foam, steel rails
FRONT BRAKE	SRAM G2 R, 4-piston, steel-backed organic pads, SRAM CenterLine 6-bolt one-piece rotors 200mm, SRAM G2 R, tool-free reach adjust
REAR BRAKE	SRAM G2 R, 4-piston, steel-backed organic pads, SRAM CenterLine 6-bolt one-piece rotor 180mm, SRAM G2 R, tool-free reach adjust
BRAKE LEVER	Sram G2 RS, SwingLink, tool-free reach adjust
RIMS	DT Swiss E1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes
SPOKES	DT Swiss Champion, straightpull
FRONT HUB	DT Swiss 370, 110x15mm Boost
REAR HUB	148x12mm Boost with 18 tooth Ratchet LN freehub and HG driver
FRONT TIRE	Maxxis Minion DHF, 3C MaxxTerra, EXO+, TR, 120 TPI, folding bead, 29" x 2.5" WT
REAR TIRE	Maxxis Aggressor, Dual Compound, EXO, TR, 60 TPI, folding bead, 29" x 2.3"
CRANKSET	SRAM SX Eagle DUB, Length: 170mm (SM/MD), 175mm (LG/XL)
RINGS	32T, CNC-machined alloy
BOTTOM BRACKET	355mm (21mm drop), SRAM DUB, sealed bearings, 73mm English/BSA threaded
PEDALS	-
CHAIN	435mm, None, SRAM SX Eagle, 32 tooth, steel, X-SYNC 2, direct mount, SRAM SX Eagle, 12-speed, with PowerLock
FRONT DERAILLEUR	-
REAR DERAILLEUR	SRAM NX Eagle, 12-speed, Type 3 roller bearing clutch, cage lock, X-ACTUATION
SHIFT LEVERS	SRAM SX Eagle, 12-speed, X-ACTUATION
CASSETTE	SRAM PG-1230, 11-50T
MOTOR	-
BATTERY	-
DISPLAY	-
DERAILLEUR HANGER	Mondraker M068
OTHERS	-
WEIGHT	-

GEOMETRY

MEASUREMENTS / GEOMETRY (Click on image to expand)

	Size	S	M	L	XL
A	Seat Tube Length	380 mm	420 mm	470 mm	510 mm
B	Top Tube Length	606 mm	629 mm	654 mm	676 mm
C	Bottom Bracket Drop	-21 mm	-21 mm	-21 mm	-21 mm
D	Bottom Bracket Height	355 mm	355 mm	355 mm	355 mm
E	Chainstay Length	435 mm	435 mm	435 mm	435 mm
F	Seat Tube Angle, Actual	71°	71°	71°	71°
G	Seat Tube Angle, Effective	76°	76°	76°	76°
H	Head Tube Angle	66°	66°	66°	66°
I	Fork Offset	44 mm	44 mm	44 mm	44 mm
J	Wheelbase	1193 mm	1222 mm	1248 mm	1274 mm
K	Head Tube Length	90 mm	100 mm	115 mm	130 mm
L	Reach	450 mm	475 mm	495 mm	515 mm
M	Stack	606 mm	615 mm	630 mm	643 mm
