Continue ShoppingMondraker - DUSK (SE) Bike - Black-Desert Grey-Orange (e-MTB ENDURO)
- $7,499

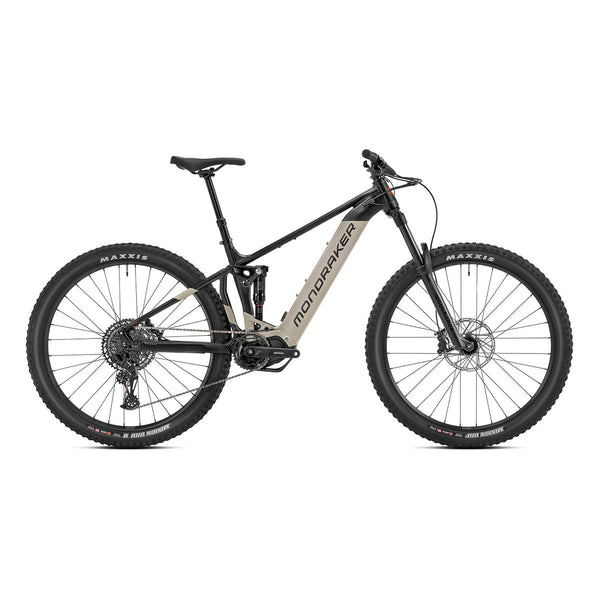

Mondraker - DUSK (SE) Bike - Black-Desert Grey-Orange (e-MTB ENDURO)
- $7,499
NOTE:
** Optional External Battery to extend capacity to 990 Wh (Sold separately). Click for Easy Setup Manual.
DESCRIPTION
Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Colors: Matte Black / Desert Grey / Orange
Get ready to experience the thrill with the Dusk e-MTB bike designed for trail and all-mountain riding! The top-end emountain bike with modern geometry is a beauty. eBike optimized zero suspension uses large bearings on a one-piece monoblock link for extreme bump absorption for plusher rides.
Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking and suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.
Unleash the power of the Shimano Steps EP800 motor, backed by an integrated 630 Wh battery, both seamlessly concealed inside a durable frame to handle the rigors of mountain bike riding. An optional Simplo 360Wh battery can be attached to the top portion of the downtube for easy extension to 990Wh range. External Battery should be purchased separately.
The compact and lighter engine design and stealth alloy frame help with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.
High-speed riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough and technical terrains.
HHG Internal Cable Routing helps with a minimalistic, clean design. One-piece upper linkage offers better lateral and torsional stiffness to reduce lateral stress on the shock action. Dusk RR design features oversized axles, boost rear axle, integrated dropout speed sensor, and enduro sealed bearings to withstand the rigors of demanding trails.
Dusk Ebike sports high-performance rear derailleurs and wide 29er, tubeless-ready tires, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.
Riding stats are just a few clicks away on the Shimano Steps E8000 display, with easy wireless connectivity features.
SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
|
FRAME |
Dusk 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor. *Optional external battery |
|
SIZES |
S: 380mm / M: 420mm / L: 450mm / XL: 490mm |
|
REAR SHOCK |
RockShox Deluxe Select R Debonair, 205x65mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings |
|
SHOCK SETTINGS |
- |
|
FORK |
RockShox 35 Silver TK 29, 160mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload |
|
HEADSET |
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45° |
|
STEM |
Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore |
|
HANDLEBAR |
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm barbore |
|
GRIPS |
Onoff Diamond, 1lock-on, 135mm |
|
SEATPOST |
Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm |
|
SADDLE |
Fizik Terra Aidon X5 145mm |
|
FRONT BRAKE |
Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
|
REAR BRAKE |
Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
|
BRAKE LEVER |
Sram G2 R, tool-free reach adjust |
|
RIMS |
MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes |
|
SPOKES |
CN round stainless steel |
|
FRONT HUB |
Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts |
|
REAR HUB |
Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts |
|
FRONT TIRE |
Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
|
REAR TIRE |
Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
|
CRANKSET |
FSA, 165mm |
|
RINGS |
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
|
BOTTOM BRACKET |
- |
|
PEDALS |
- |
|
CHAIN |
Sram SX Eagle, 12s, Powerlock |
|
FRONT DERAILLEUR |
- |
|
REAR DERAILLEUR |
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1 |
|
SHIFT LEVERS |
Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click |
|
CASSETTE |
Sram PG-1210, 11-50T, 12s |
|
MOTOR |
Shimano STEPS EP800 |
|
BATTERY |
Simplo internal 630Wh |
|
DISPLAY |
Shimano STEPS E8000 |
|
DERAILLEUR HANGER |
Mondraker M068 |
|
OTHERS |
*Optional external battery: Simplo 360Wh |
|
WEIGHT |
- |
GEOMETRY
MEASUREMENTS / GEOMETRY (Click on image to expand)
|
Size |
S |
M |
L |
XL |
|
|
A |
Seat Tube Length |
380 mm |
420 mm |
450 mm |
490 mm |
|
B |
Top Tube Length |
605 mm |
625 mm |
650 mm |
670 mm |
|
C |
Bottom Bracket Drop |
-25 mm |
-25 mm |
-25 mm |
-25 mm |
|
D |
Bottom Bracket Height |
336 mm |
336 mm |
336 mm |
336 mm |
|
E |
Chainstay Length |
455 mm |
455 mm |
455 mm |
455 mm |
|
F |
Seat Tube Angle, Actual |
73.5° |
73.5° |
73.5° |
73.5° |
|
G |
Seat Tube Angle, Effective |
76° |
76° |
76° |
76° |
|
H |
Head Tube Angle |
65.5° |
65.5° |
65.5° |
65.5° |
|
I |
Fork Offset |
44 mm |
44 mm |
44 mm |
44 mm |
|
J |
Wheelbase |
1225 mm |
1245 mm |
1265 mm |
1285 mm |
|
K |
Head Tube Length |
110 mm |
110 mm |
130 mm |
130 mm |
|
L |
Reach |
450 mm |
470 mm |
490 mm |
510 mm |
|
M |
Stack |
622 mm |
622 mm |
640 mm |
640 mm |
BIKE SIZE GUIDE
Bike Size Guide (Click on image to zoom in)
Specs for all 2022 Bikes (Click to open in new window). Or download using the viewer below
