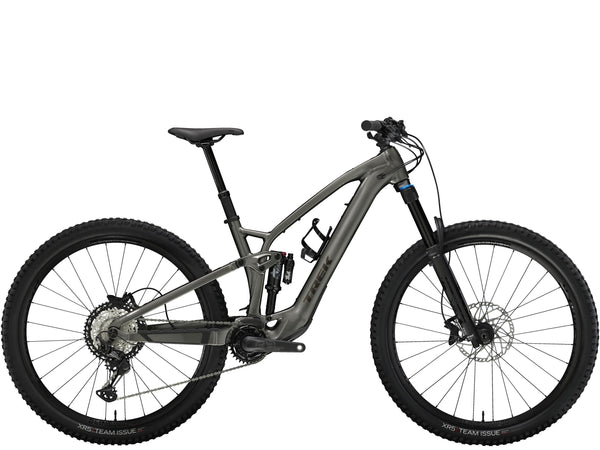

Trek Fuel EXe 8 XT

Fuel EXe 8 is a trail-ready aluminum electric mountain bike that quietly assists you on the climbs so you've got all the power you need on descents. Like its carbon counterpart, it looks and handles like a traditional trail bike, but with the added support of a tiny-but-mighty harmonic pin ring drive system with sleek top-tube display unit and compact remote. It comes ready to rip with upgraded parts where they matter most, like a FOX suspension package, wide Bontrager Line Comp Tubeless Ready wheels, and a Shimano XT 12-speed drivetrain.

• You get all the tech of our top-end light e-MTB without a price tag that makes you say ouch
• Its upgraded FOX suspension package smooths the trail while 12-speed Shimano XT drivetrain shifts clean under load
• Its tiny but mighty TQ motor is tuned for the trail, keeping things quiet so you can stay in the moment, and ramps up power with you for a natural ride feel
• The integrated display, charging port, and controls are simple to use, sleek, and intuitive
• You can tweak your geometry with Mino Link, or add an adjustable angle headset to take even more control

TQ-HPR50 – small, quiet, mighty

The TQ-HPR50 motor is super-efficient with an amazing power-to-weight ratio. Most motors use gears and belts that take up space and can make noise or break. The TQ-HPR50 uses a harmonic pin-ring drive transmission that’s small, ultra-quiet and unbelievably natural-feeling.

Range Extender

Give yourself 40% more range with an optional 160wh external battery. It fits in a standard bottle cage and doesn’t require any complicated wiring or special mounts.

Connect, customize, calculate

The Trek Central app seamlessly connects with your bike for custom motor tuning, activity tracking and more ways to analyze and personalize your ride. You even get navigation features and real-time range calculations.

Removable battery

The 360 Wh battery gives you power for 2-5 hours. It’s concealed in the downtube, but it’s still easy to remove for more convenient charging.

Active Braking Pivot

Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

Slack or steep, the choice is yours

Install angle adjust headset cups (sold separately) to tweak the head tube angle a degree steeper or slacker to your liking — all without impacting your bottom bracket height.

Frame	Alpha Platinum Aluminum, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel
Fork	Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 150mm travel
Shock	Fox Performance Float X, 2-position damper, 205mm x 60mm
Wheel Front	Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
Wheel Rear	Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle, 29''
Tire	Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50''
Tire Part	Bontrager TLR sealant, 6oz
Rim Strip	Bontrager TLR
Skewer Rear	Bontrager Switch thru axle, removable lever
Shifter	Shimano XT M8100, 12 speed
Rear Derailleur	Shimano XT M8100, long cage
Crank	E*thirteen E*spec Plus, 165mm length
Cassette	Shimano XT M8100, 10-51, 12 speed
Chain	Shimano Ultegra/XT M8100
Chainring	E*thirteen E*spec, 32T alloy ring, 55mm chainline
Brake	Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper // Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper
Brake Rotor	Shimano RT66, 6-bolt, 203mm
Saddle	Bontrager Arvada, hollow chromoly rails, 138mm width
Seatpost	Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 310mm length
Handlebar	Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width
Stem	Bontrager Elite, 35mm, 0 degree, 45mm length
Headset	Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible
Grips	Bontrager XR Trail Elite, nylon lock-on
Battery	TQ 360Wh
Motor	TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
Charger	TQ 4A charger

Geometry Chart

B B Drop	3.2
B B Height	34.1
Chainstay Length	43.8
Eff Seat Tube Angle	77.3°
Eff Top Tube	57.2
Frame Reach	43.4
Frame Size Letter	S
Frame Size Number	15.5"
Frame Stack	61.6
Head Angle	65.3°
Head Tube Length	10
Offset	4.4
Position	High
Seat Tube	38
Seat Tube Angle	69.3°
Standover	73.2
Trail	12.4
Wheelbase	118.7
Wheel Size	29"
