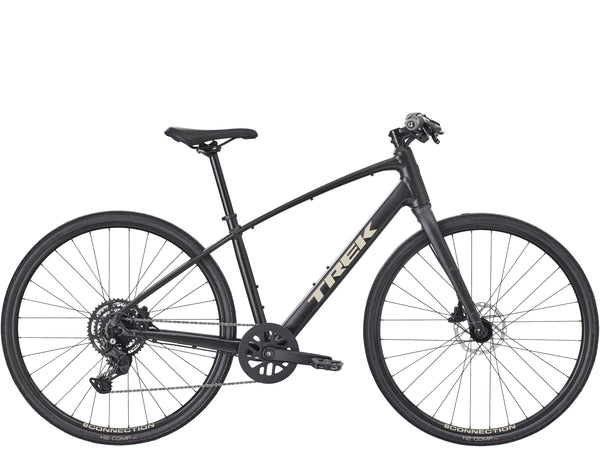

FX 2 SO L Carbon Dark Grey

FX 2 is a stylish and versatile hybrid bike for riding all around town. Exercise, commute, or ride for fun with the wide range of speeds, reliable disc brakes that let you stop on a dime, and loads of mounts for accessories.

• The stepthrough frame makes it easy to hop on and go, and hop off when your ride is over
• The cables are routed internally, which protects them from the elements and adds to the bike's sleek look
• It's easy to accessorize with racks, a kickstand, fenders, lights, and more!
• Like every Trek hybrid, it's backed by a lifetime warranty and supported by a wide network of retail partners

A better way to produce aluminum

Starting in 2024, we began removing high-emission aluminum from our manufacturing and replacing it with low-emission aluminum made with renewable energy. By October 2025, nearly every alloy bike we make - this one included - had made the switch, driving a major drop in our footprint.

Shimano CUES

Inspired by rider demand for trouble-free drivetrain longevity and performance, Shimano CUES offers a new foundation for versatility and durability across a range of both electric and standard bikes. CUES features Shimano’s new LINKGLIDE drivetrain technology for significantly increased life on wear items like chain, cassette, and chainrings.

Shimano LINKGLIDE

LINKGLIDE technology has been specifically engineered for incredible durability while still delivering smooth and decisive shifting – along with a great pedalling experience. Available exclusively on Shimano CUES drivetrains.

Upgrade your pedals and love your bike more

Pedals are two of the five touchpoints that connect you with your bike, and even though this bike comes with a pair, upgrading to pedals that boost control and grip will greatly improve your ride. See the pedal guide and find the best pedals for your riding style. We recommend flat pedals for simple versatility.

Frame	Alpha Gold Aluminum, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR
Fork	FX alloy, flat-mount disc, rack mounts, 410mm axle-to-crown, ThruSkew 5mm QR
Tire	Bontrager H2 Comp, wire bead, 30 tpi, 700x35mm
Hub Front	Formula DC-20, alloy, 6-bolt, 100x5mm
Hub Rear	Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
Rim	Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
Skewer Front	139x5mm bolt-on
Skewer Rear	152x5mm QR
Shifter	Shimano U4000, 9 speed
Rear Derailleur	Shimano CUES U4000
Crank	ProWheel Pro alloy, 40T narrow-wide steel ring, 170mm length
Bottom Bracket	Sealed cartridge, 68mm
Cassette	Shimano LINKGLIDE LG300, 11-46, 9 speed
Brake Rotor	Tektro wave, 6-bolt, 160mm
Pedal	Bontrager City pedals
Saddle	Bontrager Sport
Seatpost	Bontrager alloy, 27.2mm, 12mm offset, 400mm length
Handlebar	Bontrager alloy, 31.8mm, 15mm rise, 660mm width
Stem	Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 100mm length

Geometry Chart

B B Drop	6.5
B B Height	28.5
Chainstay Length	44.7
Eff Top Tube	58.3
Frame Reach	39.9
Frame Size Letter	L
Frame Size Number	55
Frame Stack	62
Head Angle	71.5°
Head Tube Length	19
Offset	5
Seat Tube	46.5
Seat Tube Angle	73.5°
Standover	79.1
Trail	6.4
Wheelbase	108
Wheel Size	700c
