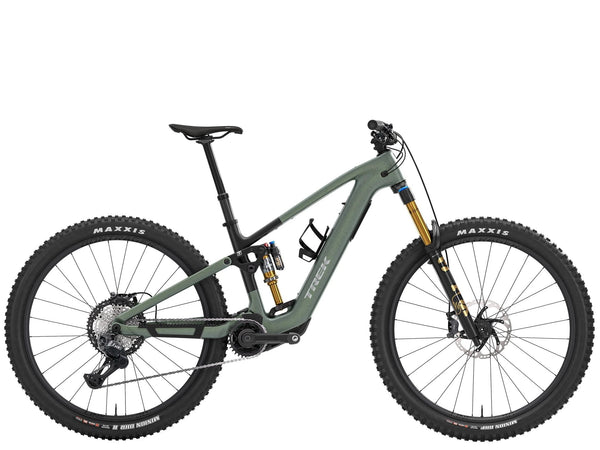

FUEL+ EX 9.8XTDi2 US XL Lichen Green/Keswick Green Splatter

Fuel+ EX 9.8 XT Di2 is an adaptable carbon e-MTB ready for sky-high climbs and dreamy descents. Its OCLV Mountain Carbon frame delivers a smooth boost from TQ's HPR-60 motor, while a Fox Factory suspension package (145mm rear, 150mm front) gives you buttery-smooth control through the rough. A wireless Shimano XT Di2 12-speed drivetrain gives you clean, customizable shifting and 4-piston XT M8200 brakes provide excellent modulation and stop-on-a-dime power.

Adapt, rip, repeat

Only you can define your perfect trail bike — that's why Fuel+ is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX, or charge through it all with LX.

Adjustable leverage rate

Want more bottom-out resistance without giving up small-bump sensitivity? Flip the chip in the lower shock mount for a more progressive leverage rate.

Zero stack integrated headset

With a ZS standard headset, you've got tons of options for aftermarket upgrades, including angle adjust or anodized colors.

TQ HPR60

Fuel+'s new HPR60 motor delivers more power and torque than before, and kicks in at a lower cadence so you feel the boost earlier. Plus, a 580Wh battery gives you more efficient power for your longest rides yet.

Fresh frame design

Fuel+ features a new frame that gives you tons of room for range extenders, long dropper posts, bigger shocks, frame bags, and more.

Active Braking Pivot

Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

Frame	OCLV Mountain Carbon, removable battery, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145mm-160mm
Fork	Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 150mm travel
Shock	Fox Factory Float X, 205mm x 60mm
Wheel Front	Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
Wheel Rear	Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12mm thru axle, 29''
Tire	Maxxis Minion DHF, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5'' // Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
Tire Part	Bontrager TLR sealant, 6oz
Rim Strip	Bontrager TLR
Skewer Rear	Bontrager Switch thru axle, removable lever
Shifter	Shimano XT Di2 M8250, 12 speed
Rear Derailleur	Shimano XT Di2 M8260, 12 speed
Crank Arm	E*thirteen E*spec Plus, 160mm length
Cassette	Shimano XT M8200, 10-51, 12 speed
Chain	Shimano Ultegra/XT M8100
Chainring	E*Thirteen Helix Core Steel 32t steel, 55mm chainline
Brake	Shimano XT M8220 4-piston hydraulic disc // Shimano XT M8220 4-piston hydraulic disc
Brake Rotor	Shimano RT86, 6-bolt, 203mm
Saddle	Verse Short Comp, steel rails, 145mm width
Seatpost	Bontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 515mm length
Handlebar	Race Face ERA, carbon, 35mm, 40mm rise, 800mm width
Stem	Bontrager Elite, 35mm, 0 degree, 45mm length
Grips	Trek Line Elite, lock-on
Battery	TQ 580Wh
Controller	TQ color LED display with Bluetooth & ANT+ connectivity
Motor	TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power
Charger	TQ 4A charger

Geometry Chart

B B Drop	3.5
B B Height	33.9
Chainstay Length	44.7
Eff Seat Tube Angle	76.9°
Eff Top Tube	65.1
Frame Reach	51
Frame Size Letter	XL
Frame Size Number	21.5"
Frame Stack	65.1
Head Angle	64.5°
Head Tube Length	14
Offset	4.4
Seat Tube	45.5
Seat Tube Angle	72.6°
Standover	75.5
Trail	12.9
Wheelbase	129.8
Wheel Size	29"
