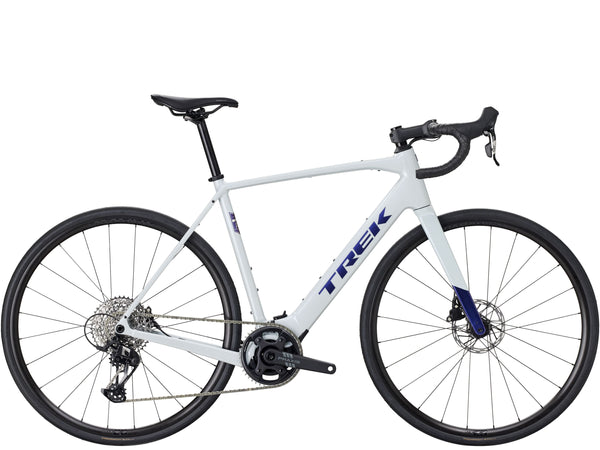

Domane+ ALR 5 US L Plasma Grey Pearl

Domane+ ALR 5 is an aluminum electric road bike with a smooth, quiet, and natural-feeling boost. Its TQ HPR60 motor gives you plenty of support for long rides and big climbs, and pairs with a SRAM Apex 12-speed drivetrain for clean, consistent shifts.

Light and mighty e-system

The industry-leading TQ HPR60 motor is ultra-compact, whisper-quiet, and offers a natural-feeling assist up to 28 mph with three assist mode options.

Double your distance with a Range Extender

Explore even farther with an optional 160Wh Range Extender that fits in your bottle cage and gives you an extended total range of around 120 miles in Eco mode.

Comfortable Road Endurance geometry

Domane+ features a stable Road Endurance geometry that's a bit more upright to keep you fast and comfortable on all-day adventures.

All-road tire clearance

Room for up to 40mm tires (as measured) lets you venture from pavement to light gravel in comfort and confidence.

Lower-impact aluminum

Domane+ ALR features a durable and economical aluminum frame made with lower-emission aluminum.

Pack it up, pack it in

Mounts for a triangle bag, rack, fenders and water bottles let you carry everything you need for day-long adventures, fast commutes, and anything in between.

Frame	300 Series Alpha Aluminum, TQ drive system, hidden fender mounts, rack mounts, integrated frame bag mounts, internal cable routing, flat mount disc, integrated chainkeeper, UDH, 142x12mm chamfered thru axle
Fork	Domane+ carbon, tapered carbon steerer, fender mounts, flat mount disc, 12x100mm thru axle
Tire	Bontrager Kwaremont Pro TLR, tubeless ready, folding bead, Race Dual-Compound, 120 tpi, 700x32mm
Hub Front	Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Hub Rear	Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
Rim	Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve
Spokes	14g stainless steel, black
Skewer Front	Bontrager Switch chamfered thru axle
Skewer Rear	Bontrager Switch chamfered thru axle, removable lever
Shifter	SRAM Apex, 12 speed
Rear Derailleur	SRAM Apex XPLR, 44T max cog
Crank	Praxis Alloy, 172.5mm length
Cassette	SRAM XPLR PG-1231, 11-44, 12 speed
Chain	SRAM Apex, 12 speed
Brake	SRAM Apex D1 hydraulic disc, flat mount // SRAM Apex D1 hydraulic disc, flat mount
Brake Lever	SRAM Apex, 12 speed
Brake Rotor	SRAM Paceline, rounded, centerlock, 160mm
Saddle	Verse Short Comp, steel rails, 145mm width
Seatpost	Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Handlebar	Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
Stem	Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
Battery	TQ 360Wh
Controller	TQ color LED display with Bluetooth & ANT+ connectivity
Motor	TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power
Charger	TQ 4A charger TQ 4A charger

Geometry Chart

B B Drop	7.8
Chainstay Length	43
Eff Top Tube	56.4
Frame Reach	38
Frame Size Letter	L
Frame Stack	61.8
Head Angle	72.0°
Head Tube Length	20.2
Offset	4.8
Seat Tube	55.3
Seat Tube Angle	73.3°
Standover	82.6
Trail	6.5
Wheelbase	102.9
Wheel Size	700c
