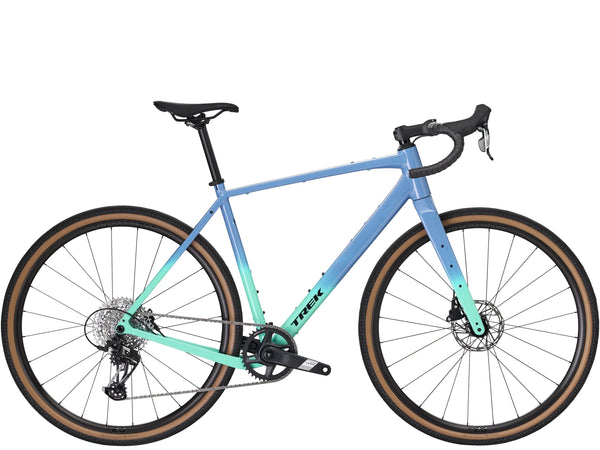

Checkpoint ALR 5 XS Fjord Blue to Miami Green Fade

Checkpoint ALR 5 is an aluminum gravel bike built for venturing anywhere. It pairs modern endurance geometry with a carbon fork for road-smoothing comfort, while 50mm of tire clearance gives you room for tons of grip. It comes equipped with SRAM Apex XPLR 12-speed shifting, hydraulic disc brakes, Tubeless Ready Bontrager Paradigm wheels, and tons of mounts for bags and gear.

• Checkpoint ALR features the same updated endurance geometry as its carbon sibling, giving you comfort and control in the rough stuff
• You get road-smoothing comfort from a full carbon fork and clearance for up to 50mm tires
• Its spec'd with 12-speed SRAM Apex XPRL shifting that's extra durable and provides plenty of gears for steep climbs and long grinds alike
• Tons of mounts on the frame and fork give you places to load up for epic bikepacking adventures or commuting around town

Mounts galore

The new Checkpoint ALR is equipped to carry everything you need with mounts on the frame and fork for front and rear racks, fenders, and Adventure Top Tube, Frame, and Triangle Bags. Plus, the new frame was optimized to fit extra hydration in addition to all your bags.

Gravel Endurance geometry

Designed with Gravel Endurance geometry with a higher stack and shorter reach for improved comfort and control on long days in the saddle.

Big 'ol tire clearance

Designed with 50mm (or 29 x 2.0)* tire clearance for more grip and comfort on challenging terrain.
*As measured

Suspension fork and dropper post compatible

Compatible with a suspension fork* and dropper post for riders tackling technical descents or seeking more aggressive off-road performance.
*Available on all sizes except XS frames

A better way to produce aluminum

Starting in 2024, we began removing high-emission aluminum from our manufacturing and replacing it with low-emission aluminum made with renewable energy. By October 2025, nearly every alloy bike we make - this one included - had made the switch, driving a major drop in our footprint.

Frame	300 Series Alpha Aluminum, Internal cable routing, 3S chain keeper, T47, UDH, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm chamfered thru axle
Fork	Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
Tire	Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
Tire Part	Bontrager TLR sealant, 6oz
Hub Front	Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Hub Rear	Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
Rim	Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve
Spokes	14g stainless steel, black
Skewer Front	Bontrager Switch chamfered thru axle
Skewer Rear	Bontrager Switch chamfered thru axle, removable lever
Shifter	SRAM Apex, 12 speed
Rear Derailleur	SRAM Apex XPLR, 44T max cog
Crank	SRAM Apex 1, 40T, DUB Wide, 165mm length
Bottom Bracket	SRAM DUB Wide, T47 threaded, internal bearing
Cassette	SRAM XPLR PG-1231, 11-44, 12 speed
Chain	SRAM Apex, 12 speed
Brake	SRAM Apex D1 hydraulic disc, flat mount // SRAM Apex D1 hydraulic disc, flat mount
Brake Lever	SRAM Apex, 12 speed
Brake Rotor	SRAM Paceline, rounded, centerlock, 160mm
Saddle	Verse Short Comp, steel rails, 145mm width
Seatpost	Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Handlebar	Bontrager Elite Gravel, alloy, 40cm width
Stem	Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length

Geometry Chart

B B Drop	7.8
Chainstay Length	43.5
Eff Top Tube	53.6
Frame Reach	38
Frame Size Letter	XS
Frame Stack	54.5
Head Angle	71.2°
Head Tube Length	9.6
Offset	4.9
Seat Tube	49
Seat Tube Angle	74.1°
Standover	73.5
Trail	7.4
Wheelbase	102.5
Wheel Size	700c
